Новый Колёсный погрузчик Günter Grossmann GG010

GG010

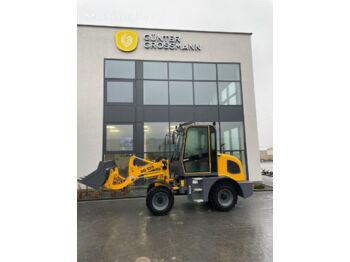

The new Günter Grossmann GG010 LOADER The Günter Grossmann GG010 loader (1000 kg load capacity) is the brand new Machine Van. Günter Grossmann is a high-quality machine made for a European company.

The Loader is very powerful and can perform its work under all circumstances. The loader is very comfortable to operate because all functions are incorporated in the joystick. The control panel is very simple, clear and well-arranged. The cabin is soundproof, insulated and equipped with heating. The machine is also equipped with comfortable and attractive glazing, which makes safe and comfortable working possible. also for the longer term

The machine has a very durable and solid construction. The machine is equipped with a quick coupling as standard, allowing accessories to be changed quickly without leaving the cab.

Additional equipment can be ordered: 4 in 1 bucket, crocodile grab, crocodile grab for trees, straw or silage.

Price

14,550 euros

(excl. VAT) Included as standard GG010 loader + bucket + pallet fork + quick coupling

Model 1000kg

SPECIFICATIONS

Model: GG10

Brand: Gunter Grossmann

Engine: Changchai 390

Engine: In-line arrangement, water-cooled four-stroke diesel engine

Engine power: 50 hp

Speed: 2200 r/min (rpm)

Steering system: Cycloidal full hydraulic steering system: BZZ-80

System pressure: 10MPa

Service brake: Hydraulic 4-wheel brake with splayed shoes

Parking brake: manual

Tire: 10-16.5

Wheelbase: 2170mm

Track: 1285mm

DIMENSIONS

Total length (bucket at ground position): 41--mm

Ground to top of cab: 2

530mm

Total width: 1600mm

WORKING RANGE

Bucket capacity: 0.5 m3

Bucket width: 1600 mm

max. Height Breakout force: 28KN

Rated load: 1000 kg

Operating weight: 2850 kg

Drive means: four-wheel drive

Min turning radius: 4600mm
