Металлообрабатывающий станок CMZ TA 20 YS

Gewerbering 6, D-82140 Olching

Technical Datasheet: show contacts%20Datenblatt_89-001334.pdf

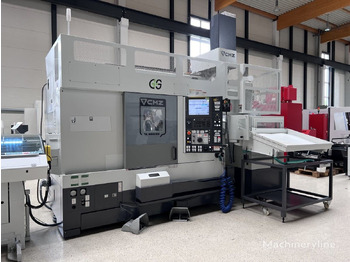

CMZ TA 20 YS

Control : Fanuc 32i-TB

Turning diam. : 460 mm

Turning length : 640 mm

____________

Description

Mainspindle

Technology:Motorspindle

Speed (max.):4.000 rpm

Torque (max.):366 Nm

Barcapacity:65 mm

Workpiececlamping:3-Jaw chuck

SMW Autoblock 210 BB-T2

Subspindle

Technology:Motorspindle

Speed (max.):4.500 rpm

Torque (max.):292 Nm

Workpiececlamping:3-Jaw chuck

SMW Autoblock 175 BB with difference clamping

Partsejector:Pneumatic

Movement in B:640 mm

Rapid travers in B:30 m/min

Toolcarrier (X/Y/Z)

Technology:Turret with 15 stations

Taper:BMT 55

Tooldrive:12.000 rpm

11,3 kW

75 Nm

Movement in X/Y/Z:310/120/640 mm

Rapid travers in X/Y/Z:30/15/30 m/min

Equipment/Accessory

Positionsensor:Direct scales in X/Y/Z

Chipmanagement:Chip conveyor

Coolingmanagement:Internal coolant pump with filter and high-pressure

35 bar

Toolmeasurement:Measuring arm

Renishaw HPRA RP3

Raw-materialfeed:Barloader

Breuning-Irco ILS-MUK 7012-III

Finished-part removal:Part catcher with conveyor belt

Automation:Gantry Loader GL20-II with pallet storage and collecting table

Oilmistseparation:Mechanical extraction

Filtermist FX 4002

Setup operations:Electronic handwheel

Toolholder:Misc. static and driven toolholder

Further Accessory:Misc. Clamping jaws

Rinsing pistol
