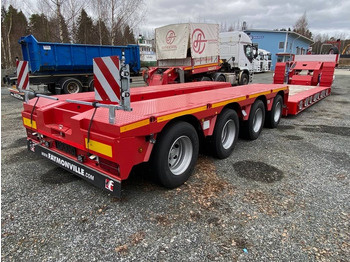

Faymonville MAX100-N-6A-9.30 в лизинг

Speed: 80 km/h

Total weight: 86,000 kg

Seat load: 23,000 kg

Axle load: 63,000 kg

Container (+/- 3%) : 13,998 kg

Load capacity +/- : 72,002 kg

Jib length: 3800 mm

Clutch height with load: 1200 mm

Turning radius from kingpin: 2300 mm

Working platform length: 9300 mm

Extension: 7000 mm

Center distance: 1360 mm

Width: 2540 mm

Height with maximum load: 900 mm

Suspension: -55/ +145 mm∗∗∗

Total weight depends on the load on the saddle.

Technical description Jib Jib with rear bevel +/- 750mm x 10°3 pairs of fastening rings (LC 5,000 daN).

Covering made of hard wood 30 mm thick.Loading platform: Sliding loading platform with sloping rear -/+500 mm x 86 pairs of outward folding mounting rings (LC 5,000 daN).3 pairs of outward folding mounting rings (LC 10,000daN).One pair of mounting rings at the rear of the loading chamberplatforms (LC 10,000 daN) Hardwood cover 48 mm thick, above centerlinecorrugated sheet.

Stops: (Mechanical) JOST stops, 2-speed,lifting capacity 24t (50t load proof).

Wheels: Wheels 245/70 R17.5 3PMSF

Selecting a tire brand depending on availabilityfactory Load index(143/141 J)

Axles and suspension: BPW axles and suspension. 1 turning axle, 2+3+4 axlesfixed, 5 +6 self-rotating axis. Technicalaxle load: 12,000 kg. 1 and 5 +6 axes with electromagneticlock activated when gear is engagedreverse or manually.
